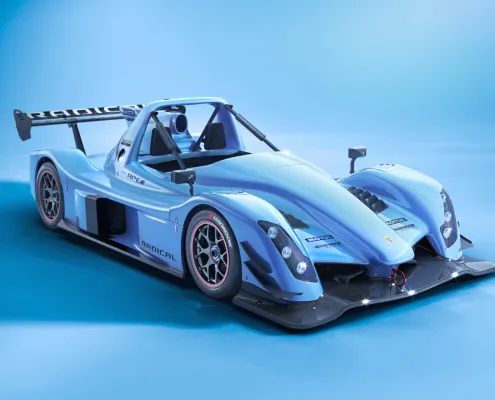

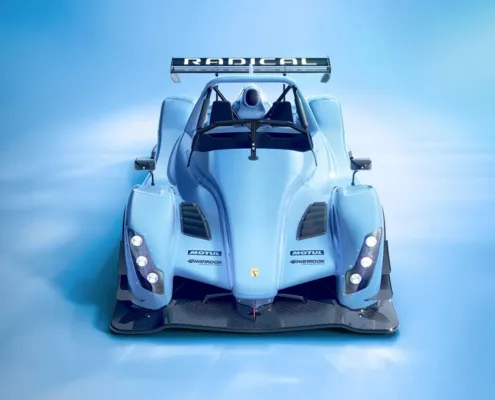

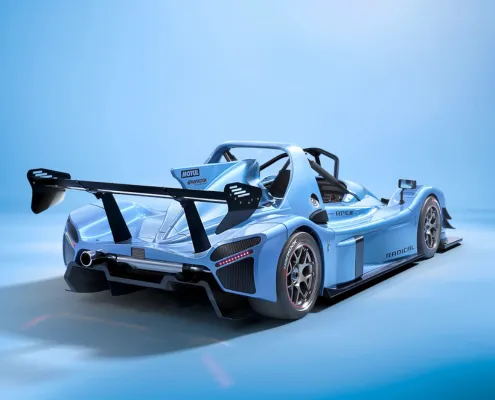

SR10

Weight

725 kg

Power

425 bhp

Overview

Pure extreme performance

Ideal for track-day enthusiasts, motorsport country club members, and racers across the globe, the SR10 delivers more power and torque than has ever before featured in Radical’s SR line-up. With a high horsepower, long-life powertrain, the Radical SR10 is everything you’d expect from a Radical – turbocharged.

The SR10’s sole purpose is to out-run and out-manoeuvre the competition whilst remaining easy to drive and cost-effective to run. Radical Performance Engines (RPE) cutting-edge engine tuning capabilities and Ford’s EcoBoost's reliable engine architecture come together to unleash a powerful race engine with 425bhp and 380lb-ft of torque. A bespoke Garrett G-Series turbocharger delivers better throttle response and reduced lag, with forged pistons and connecting rods and a bespoke dry-sump lubrication system for bulletproof durability. This high-output engine is integrated with a new Hewland GT3-derived six-speed gearbox

SR10

Silverstone Laptime : 1min 58sec

Length

4077 mm

Power

425 bhp

Width

1799 mm

Height

1093 mm

Torque

380 lb-ft

Standard Features

BODY

Lightweight spaceframe chassis with FIA-specification safety cell and crash structure

LMP-inspired, high-downforce composite bodywork

XXR-generation LED race lighting including FIA high-intensity central rain light

Bi-plane high-downforce track day rear wing and diffuser

XX-generation Le Mans pre-preg carbon composite mirrors

XXR-generation rear wing endplates

Cockpit

Two-seater chassis with twin or single-seat options, optimised for use with a moulded race seat insert

AiM Formula Wheel with integral LCD display, lightweight shift paddles and on-wheel switching.

Display functions include LCD rev counter, gear indicator, shift light and engine/gearbox strategy manettino controls

Built-in SmartyCam video system with GPS and brake pressure and steering logging sensors

Pre-preg carbon-fibre dashboard with waterproof, backlit momentary touchpad

Dash-mounted brake bias adjuster

Wind deflector

Power train

Six-speed Hewland sequential transaxle

Radical developed paddle-activated gearshift system with auto-blipper

Automatic torque-biasing limited slip differential

Mid-engined, rear-wheel-drive

Wheels and Tyres

Radical XXR design centre lock, cast aluminium wheels

8" × 15" diameter front and 10.5" × 16" rears

Slick & wet tyre options,

Radical recommends Hankook

ENGINE

RPE-Ford 2261cc, 425bhp & 380ft-Ib, turbocharged engine

Direct injection, twin-independent variable cam timing and drive-by-wire throttle

Custom Garrett turbocharger

Forged motorsport pistons, connecting rods and bespoke dry-sump system

Latest Life Racing ECU with detailed interrogation function for maintenance and analysis

High-flow racing exhaust system

Features

Radical four-pot calipers on 315mm x 35mm front & rear fully-floating 48-vane disc brakes

Front & rear brake cooling

Solid-state Power Distribution Module (PDM) with Controller Area Network (CAN) linked wiring and telemetry

Data integration allowing additional data logging including tyre pressure and temperature monitoring, and laser ride height logging

FIA specification, foam filled 77L (US 20 gallons) fuel cell

Full electronic fire extinguisher system

Trickle-charger Li-ON

Suspension

Fully adjustable Nik-link suspension system, front and rear unequal length top and bottom wishbones, fabricated uprights, front and rear adjustable pushrods

Lightweight cast aluminium updated uprights providing an improvement in durability

Interchangeable roll bars

Intrax triple-adjustable dampers with Anti-Roll Control (ARC) technology

Dimensions

Length: 4077mm

Width: 1799mm

Height: 1093mm

Weight: 725kg
